Samco UV-300H UV-Ozone Stripper / Cleaner

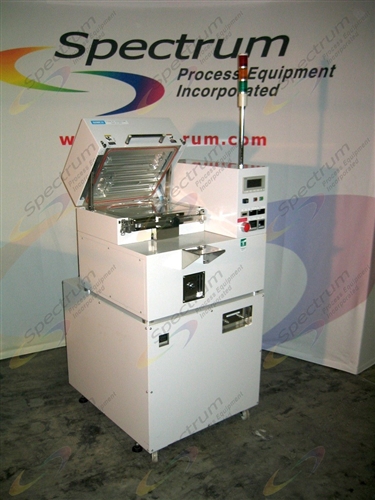

Samco UV-300H UV-Ozone Cleaner

Alternative Views:


Product Code: 10076
Thanks for looking!

Description

The Samco Model UV-300H UV-Ozone Stripper Cleaner can be used for stripping or cleaning organic materials from a wide variety of substrate materials. The system process substrates using a combination of UV light, ozone and heat to clean substrates at atmospheric pressure.

FEATURES:

Substrate Loading:    Easy, drawer-type slide to load substrates

Operating Pressure:    Atmospheric pressure

Cleaing Process:    Dry process using UV light, Ozone and Heat to completely clean delicate electrical circuits

APPLICATIONS:    Stripping photoresist and polyimide; ink removal from EPROM wafers (without erasing programs); removing organic contamination from substrates prior to thin film deposition; preparing surface for photoresist; descumming photoresist and E-Beam resist; cleaning wafers prior to wafer bonding

Dimensions:    27W x 31D x 50H (inches)

FACILITY REQUIREMENTS:

Power:    115VAC; 1PH; 40A

Cooling Water:    50-75 degrees F; 48-42 psig pressure differential between supply & drain

Process Gasses:    Oxygen (O2) - 14.2 psig; 0-20 SLM flow (max)

Purge:    Nitrogen (N2) - 25 psig; 37-50 SLM flow

Compressed Air (to raise & lower substrate heater):    Dry air; 85 psig

Venting:    Customer provided; should be Teflon, Stainless Steel or Aluminum in construction; negative pressure not to exceed 0.2 inches of water column

more information...
